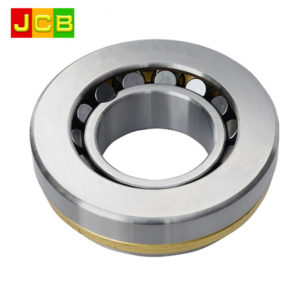

29430E spherical roller thrust bearing

29430E spherical roller thrust bearing

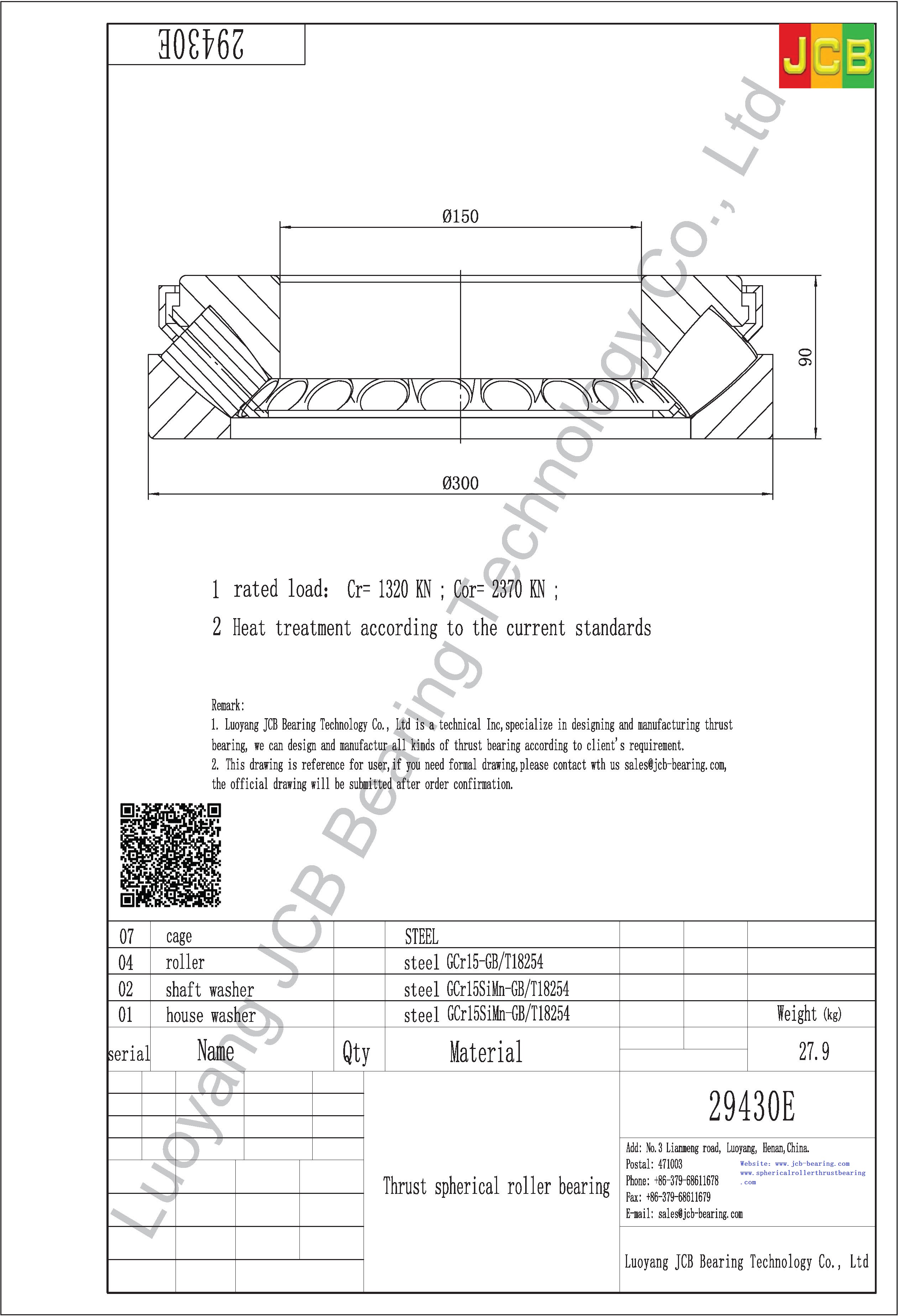

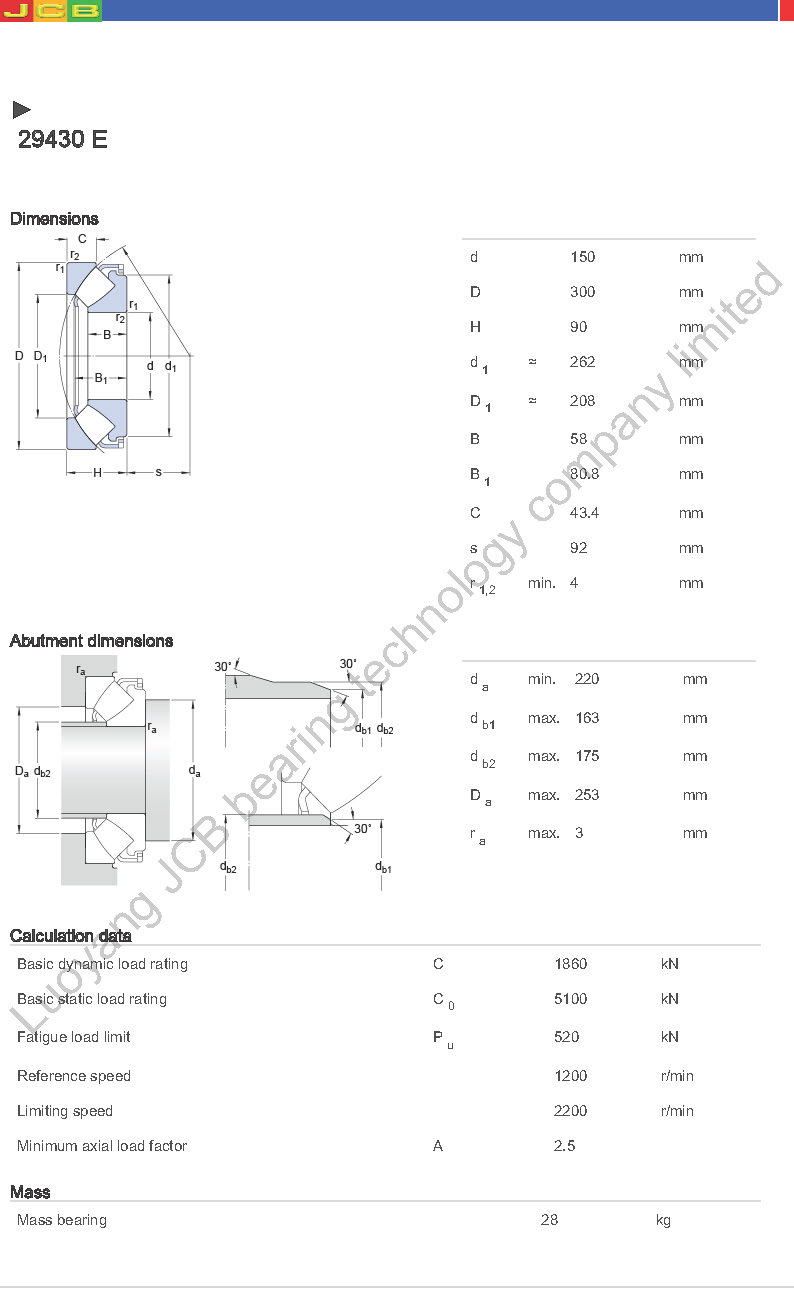

Dimensions

d   150 mm        D   300 mm

H   90 mm          d1 ≈ 262 mm

D1 ≈208 mm     B 58 mm

B1 80.8  mm         C 43.4   mm

s   92 mm         r1,2 min. 4 mm

Material: GCr15SiMn According to Standard  GB/T18254
Stock availability:  yes
HS code: 8482101000
Category:

Description

Dimensions of 29430E spherical roller thrust bearing

The boundary dimensions of 29430E spherical roller thrust bearing conform with ISO 104:2002 standard.

Abutment dimensions
Dimensions of 29430E spherical roller thrust bearing1
damin.220mm
db1max.163mm
db2max.175mm
Damax.253mm
ramax.3mm

Misalignment

The structure of 29400 series spherical roller thrust bearing features self-aligning, and can accommodate misalignment of the shaft relative to the housing which can be caused by shaft deflection ect (Fig.8).

The permissible misalignment is reduced as the load increases. Guideline values for misalignment and rotation of the shaft washer relative to the housing washer listed in table 1.

When designing bearing arrangements with rotating housing washer in combination with misalignment or when the shaft wobbles relative to the housing, contact JCB. Whether these values can be fully exploited depends on the design of the bearing arrangement and the external sealing design ect.

Calculation data
Basic dynamic load ratingC1860kN
Basic static load ratingC05100kN
Fatigue load limitPu520kN
Reference speed1200r/min
Limiting speed2200r/min
Minimum axial load factorA2.5

Impact Resistance Performance

In order to extend service life and accommodate working conditions, 29430E spherical roller thrust bearing substantially improved the performance by optimizing the internal geometry and surface finish of all contact surfaces, combining the adoption of high standard steel with a salt bath quenching, perfecting the cage, roller profile and the geometry of the raceways.

Embodied in:

  1. Higher dynamic load carrying capacity
  2. Improved wear-resistance
  3. Reduced noise and vibration levels
  4. Less frictional heat
  5. Significantly extended bearing service life

Applications

Our products,29430E spherical roller thrust bearing is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, rolling mill, crusher, tower crane, engineering machinery, construction machinery, oil rig, vertical motor, hydroelectric generator and so on.

29430E spherical roller thrust bearing
