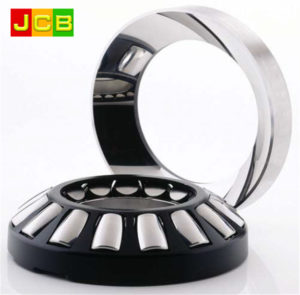

294/500EM spherical roller thrust bearing

294/500EM spherical roller thrust bearing

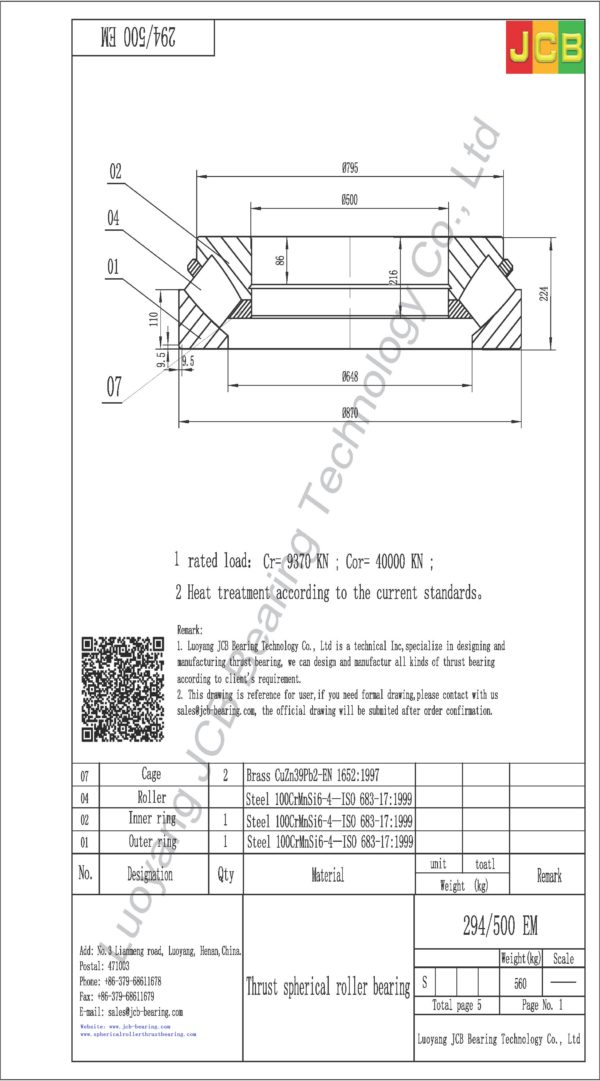

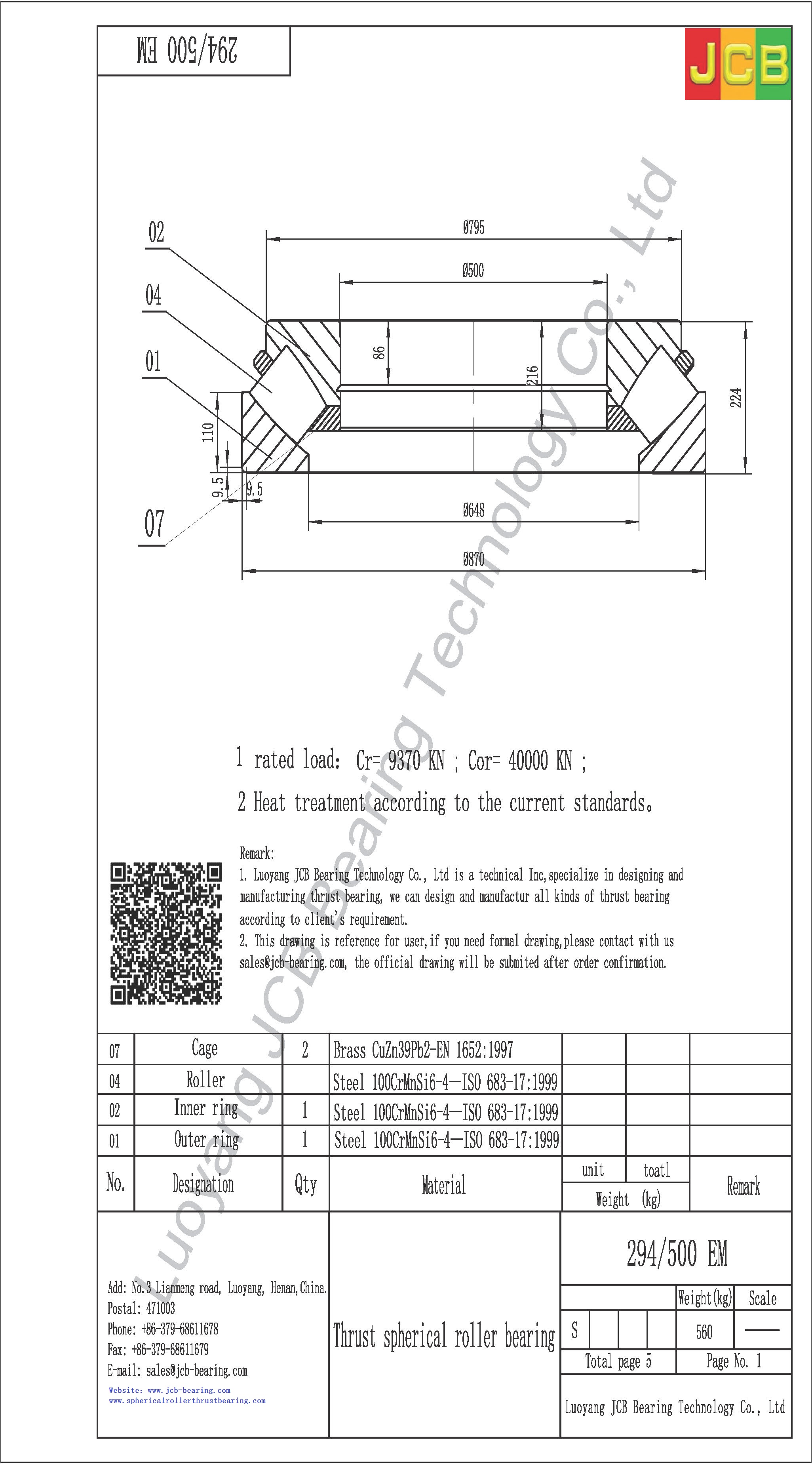

Dimensions

d   500 mm        D   870 mm

H   224 mm          d1 ≈ 795 mm

D1 ≈ 678 mm     B   86 mm

B1  246 mm         C   110 mm

s   290 mm         r1,2 min. 9.5 mm

Material: GCr15SiMn According to Standard  GB/T18254
Stock availability:  yes
HS code: 8482101000
Category:

Description

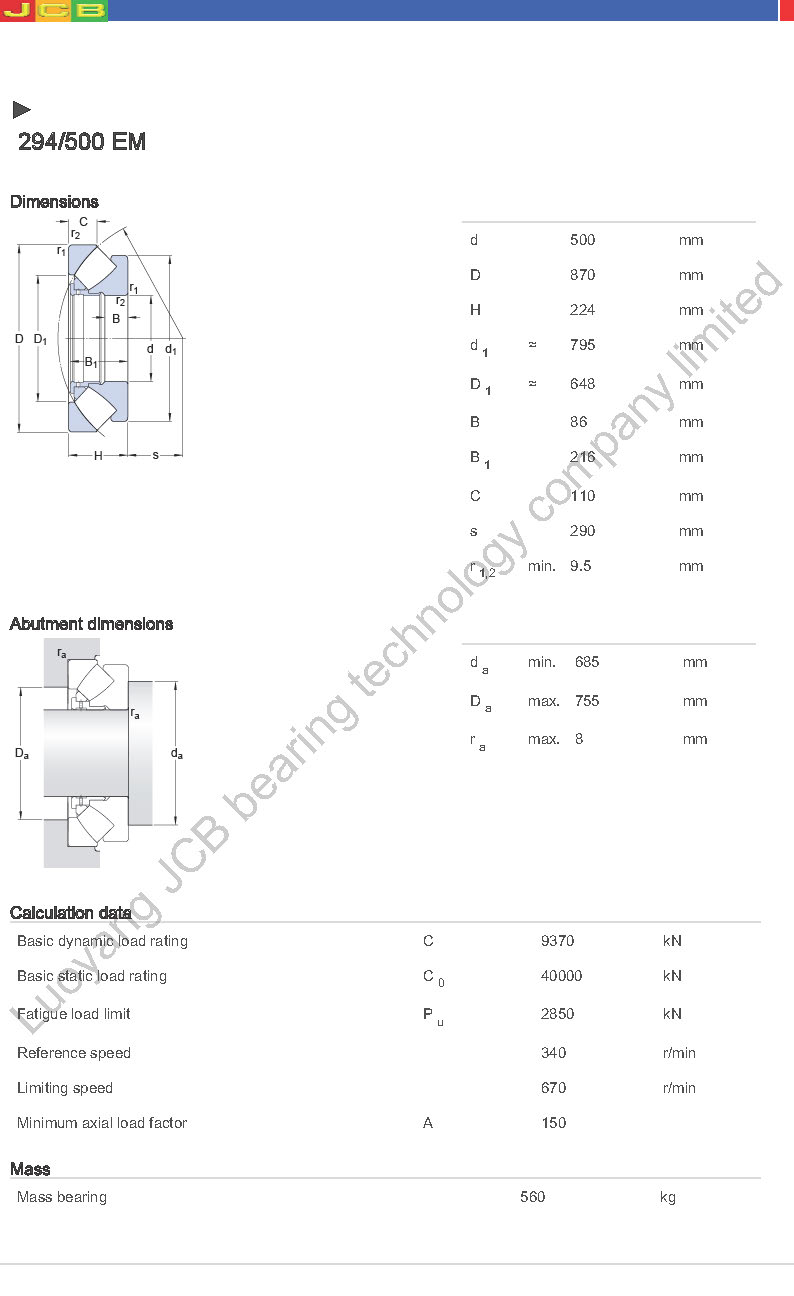

Dimensions of 294/500EM spherical roller thrust bearing

The boundary dimensions of 294/500EM spherical roller thrust bearing conform with ISO 104:2002 standard.

.

Abutment dimensions
Dimensions of 294/500EM spherical roller thrust bearing
damin.685mm
Damax.755mm
ramax.8mm

Misalignment

The structure of 29400 series spherical roller thrust bearing features self-aligning, and can accommodate misalignment of the shaft relative to the housing which can be caused by shaft deflection ect (Fig.8).

The permissible misalignment is reduced as the load increases. Guideline values for misalignment and rotation of the shaft washer relative to the housing washer listed in table 1.

When designing bearing arrangements with rotating housing washer in combination with misalignment or when the shaft wobbles relative to the housing, contact JCB. Whether these values can be fully exploited depends on the design of the bearing arrangement and the external sealing design ect.

Calculation data
Basic dynamic load ratingC9370kN
Basic static load ratingC040000kN
Fatigue load limitPu2850kN
Reference speed340r/min
Limiting speed670r/min
Minimum axial load factorA150

Impact Resistance Performance

In order to extend service life and accommodate working conditions, 294/500EM spherical roller thrust bearing substantially improved the performance by optimizing the internal geometry and surface finish of all contact surfaces, combining the adoption of high standard steel with a salt bath quenching, perfecting the cage, roller profile and the geometry of the raceways.

Embodied in:

  1. Higher dynamic load carrying capacity
  2. Improved wear-resistance
  3. Reduced noise and vibration levels
  4. Less frictional heat
  5. Significantly extended bearing service life

Applications

Our products,29400 series spherical roller thrust bearing is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, rolling mill, crusher, tower crane, engineering machinery, construction machinery, oil rig, vertical motor, hydroelectric generator and so on.
