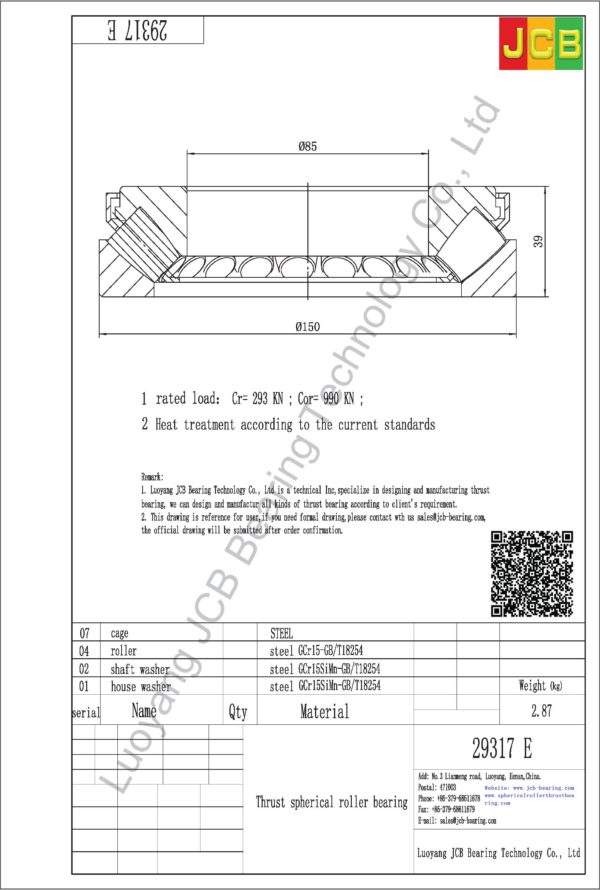

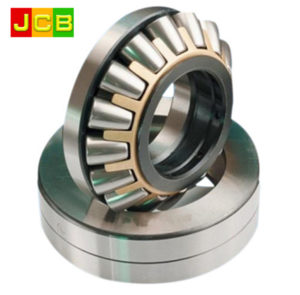

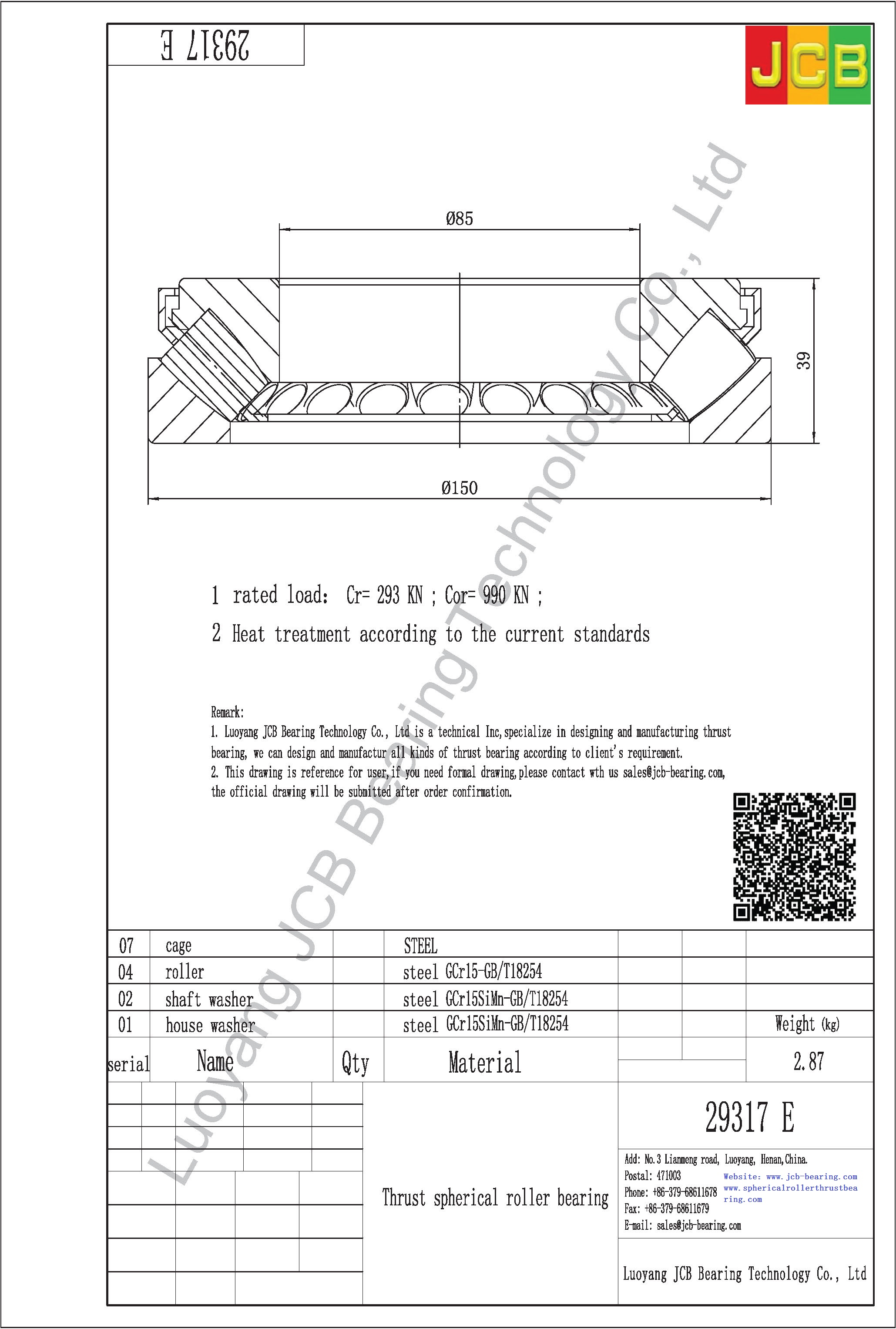

29317 E spherical roller thrust bearing

29317 E spherical roller thrust bearing

Dimensions

d  85 mm        D  150 mm

H  39 mm          d1 ≈134 mm

D1 ≈110 mm     B 24.5 mm

B1 33.8 mm         C  20 mm

s  50 mm         r1,2 min. 1.5 mm

Material: GCr15SiMn According to Standard  GB/T18254
Stock availability:  yes
HS code: 8482101000
Category:

Description

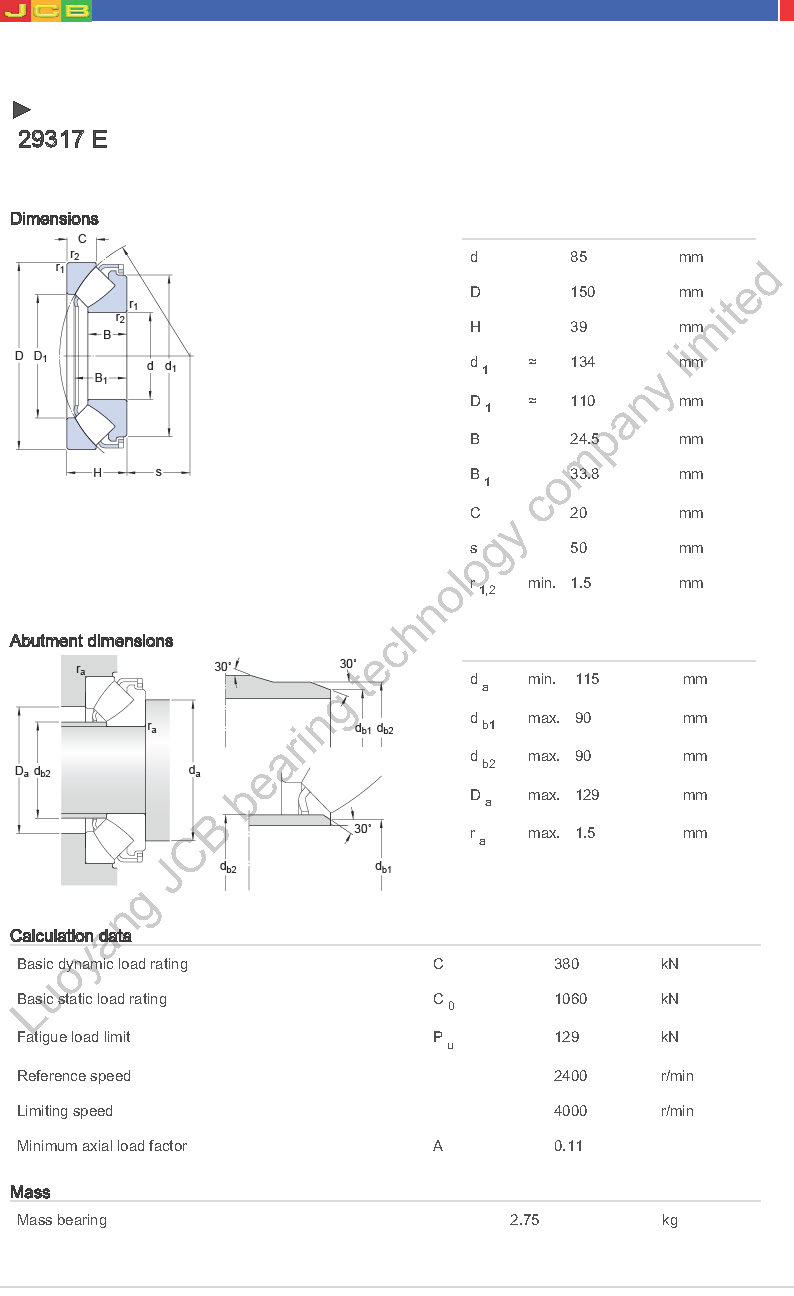

Dimensions of 29317 E spherical roller thrust bearing

The boundary dimensions of 29317 E spherical roller thrust bearing conform with ISO 104:2002 standard.

Abutment dimensions
Dimensions of  29317 E spherical roller thrust bearing1
damin.115mm
db1max.90mm
db2max.90mm
Damax.129mm
ramax.1.5mm

Misalignment

The structure of 29300 series spherical roller thrust bearing features self-aligning, and can accommodate misalignment of the shaft relative to the housing which can be caused by shaft deflection ect (Fig.8).

The permissible misalignment is reduced as the load increases. Guideline values for misalignment and rotation of the shaft washer relative to the housing washer listed in table 1.

When designing bearing arrangements with rotating housing washer in combination with misalignment or when the shaft wobbles relative to the housing, contact JCB. Whether these values can be fully exploited depends on the design of the bearing arrangement and the external sealing design ect.

Calculation data
Basic dynamic load ratingC380kN
Basic static load ratingC01060kN
Fatigue load limitPu129kN
Reference speed2400r/min
Limiting speed4000r/min
Minimum axial load factorA0.11

Impact Resistance Performance

In order to extend service life and accommodate working conditions, 29317 E spherical roller thrust bearing substantially improved the performance by optimizing the internal geometry and surface finish of all contact surfaces, combining the adoption of high standard steel with a salt bath quenching, perfecting the cage, roller profile and the geometry of the raceways.

Embodied in:

  1. Higher dynamic load carrying capacity
  2. Improved wear-resistance
  3. Reduced noise and vibration levels
  4. Less frictional heat
  5. Significantly extended bearing service life

Applications

Our products,29317 E spherical roller thrust bearing is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, rolling mill, crusher, tower crane, engineering machinery, construction machinery, oil rig, vertical motor, hydroelectric generator and so on.

29317 E spherical roller thrust bearing

Mass

Mass bearing2.75kg
