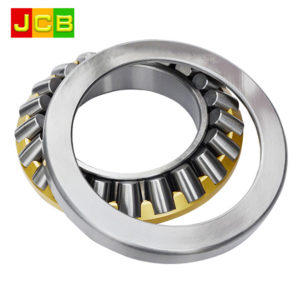

292/530 EM spherical roller thrust bearing

292/530 EM spherical roller thrust bearing

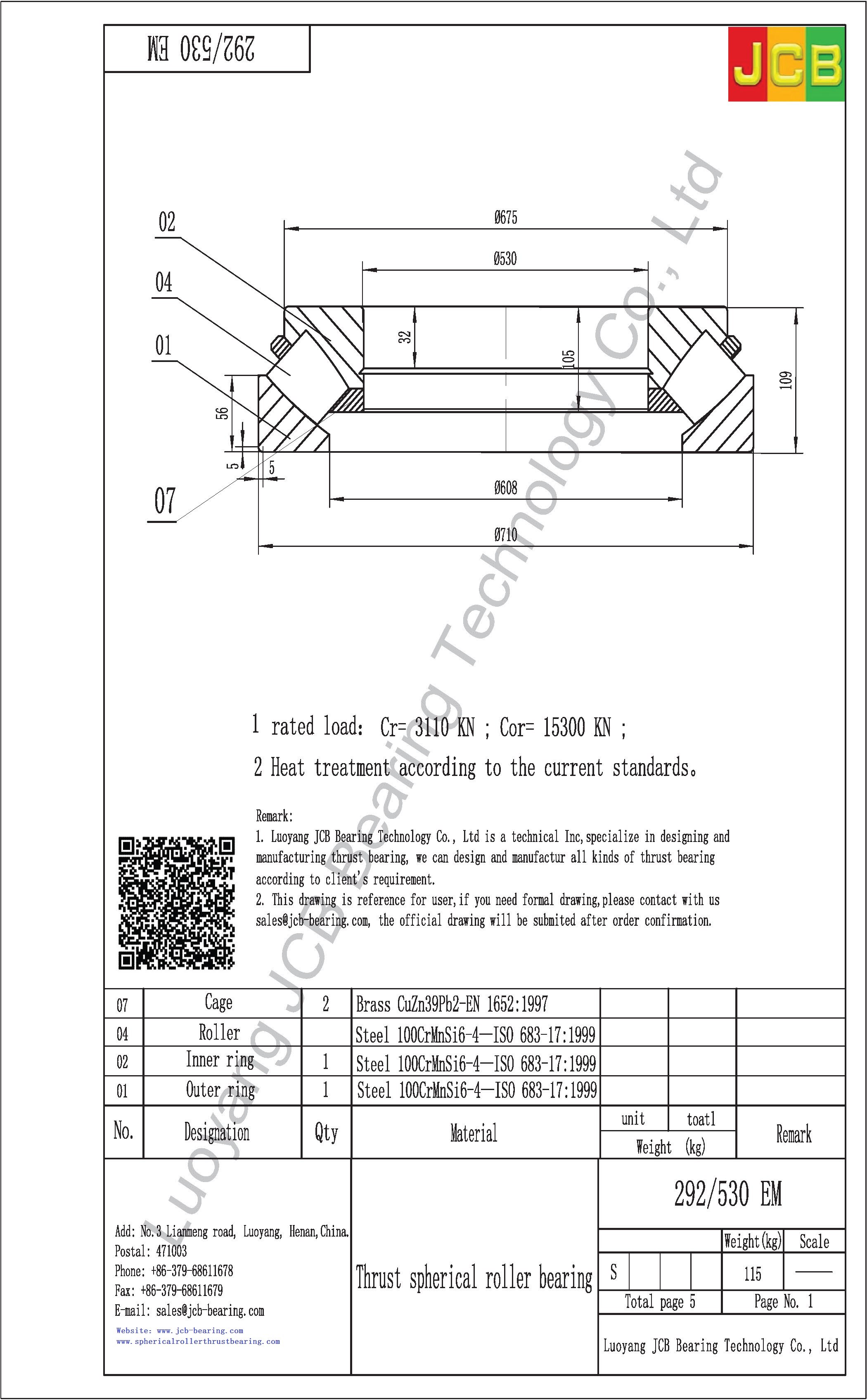

Dimensions

d 530 mm        D  710 mm

H  109 mm          d1 ≈675 mm

D1 ≈608 mm     B 32  mm

B1 105  mm         C 56 mm

s   285 mm         r1,2 min. 5 mm

Material: GCr15SiMn According to Standard  GB/T18254
Stock availability:  yes
HS code: 8482101000
Category:

Description

Dimensions

The boundary dimensions of 292/530 EM spherical roller thrust bearing conform with ISO 104:2002 standard.

Misalignment

The structure of 29200 series spherical roller thrust bearing features self-aligning, and can accommodate misalignment of the shaft relative to the housing which can be caused by shaft deflection ect

The permissible misalignment is reduced as the load increases. Guideline values for misalignment and rotation of the shaft washer relative to the housing washer listed in table 1.

When designing bearing arrangements with rotating housing washer in combination with misalignment or when the shaft wobbles relative to the housing, contact JCB. Whether these values can be fully exploited depends on the design of the bearing arrangement and the external sealing design ect.



Impact Resistance Performance

In order to extend service life and accommodate working conditions, 292/530 EM spherical roller thrust bearing substantially improved the performance by optimizing the internal geometry and surface finish of all contact surfaces, combining the adoption of high standard steel with a salt bath quenching, perfecting the cage, roller profile and the geometry of the raceways.

Embodied in:

  1. Higher dynamic load carrying capacity
  2. Improved wear-resistance
  3. Reduced noise and vibration levels
  4. Less frictional heat
  5. Significantly extended bearing service life

Applications

Our products is extensively applied on the industries as marine gearbox, marine propeller shaft, industrial gearbox, plastic machinery, rubber machinery, rolling mill, crusher, tower crane, engineering machinery, construction machinery, oil rig, vertical motor, hydroelectric generator and so on.

292/530 EM spherical roller thrust bearing

Abutment dimensions

292/530 EM spherical roller thrust bearing
damin.620mm
Damax.655mm
ramax.4mm

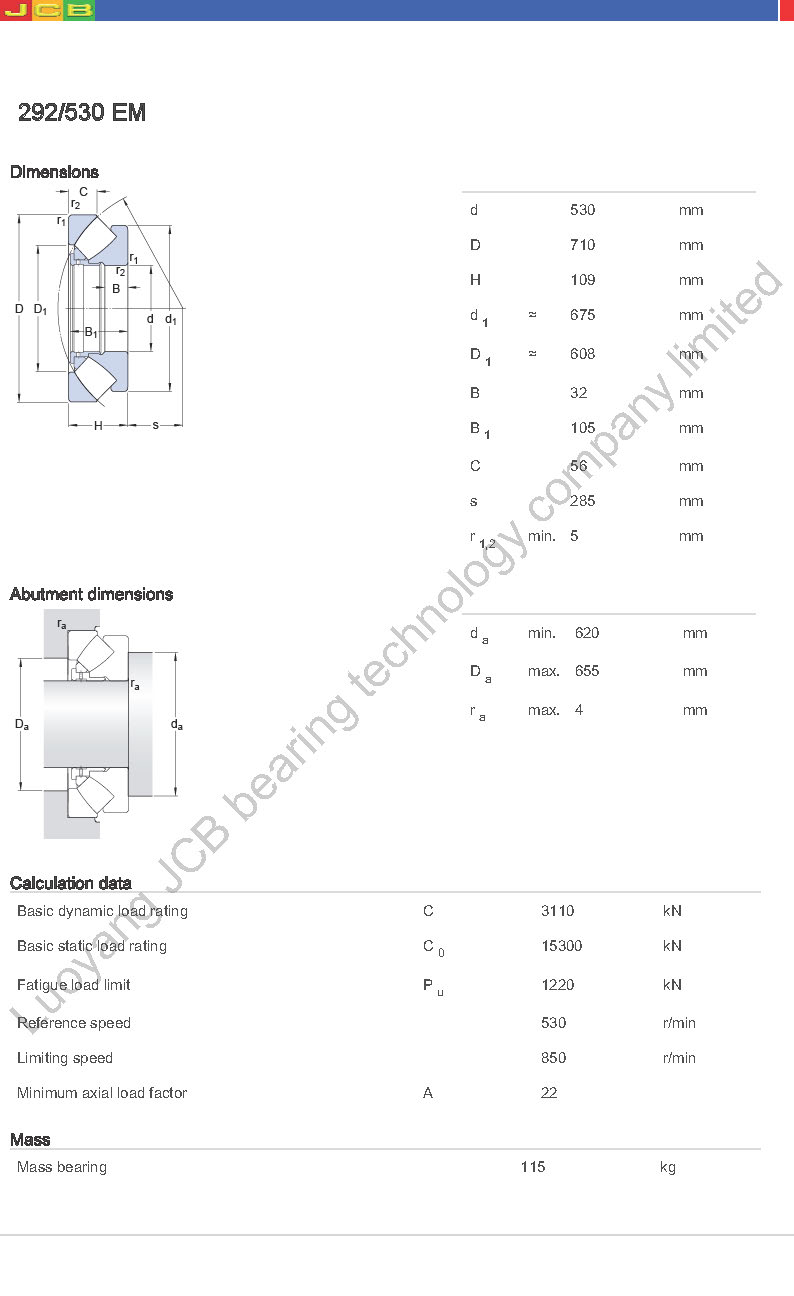

Calculation data

Basic dynamic load ratingC3110kN
Basic static load ratingC015300kN
Fatigue load limitPu1220kN
Reference speed530r/min
Limiting speed850r/min
Minimum axial load factorA22
